Fifty Grand Seikos, No Two Alike: Inside the Hand-Engraved Hisen
Grand Seiko's Hisen SBGZ011 pairs a free-hand-engraved platinum case with a 9R02 Spring Drive movement that carries an 84-hour power reserve and a torque-return system found nowhere else in the catalog.
Image: watchesbysjx.com
Engraved Once, Never Stamped

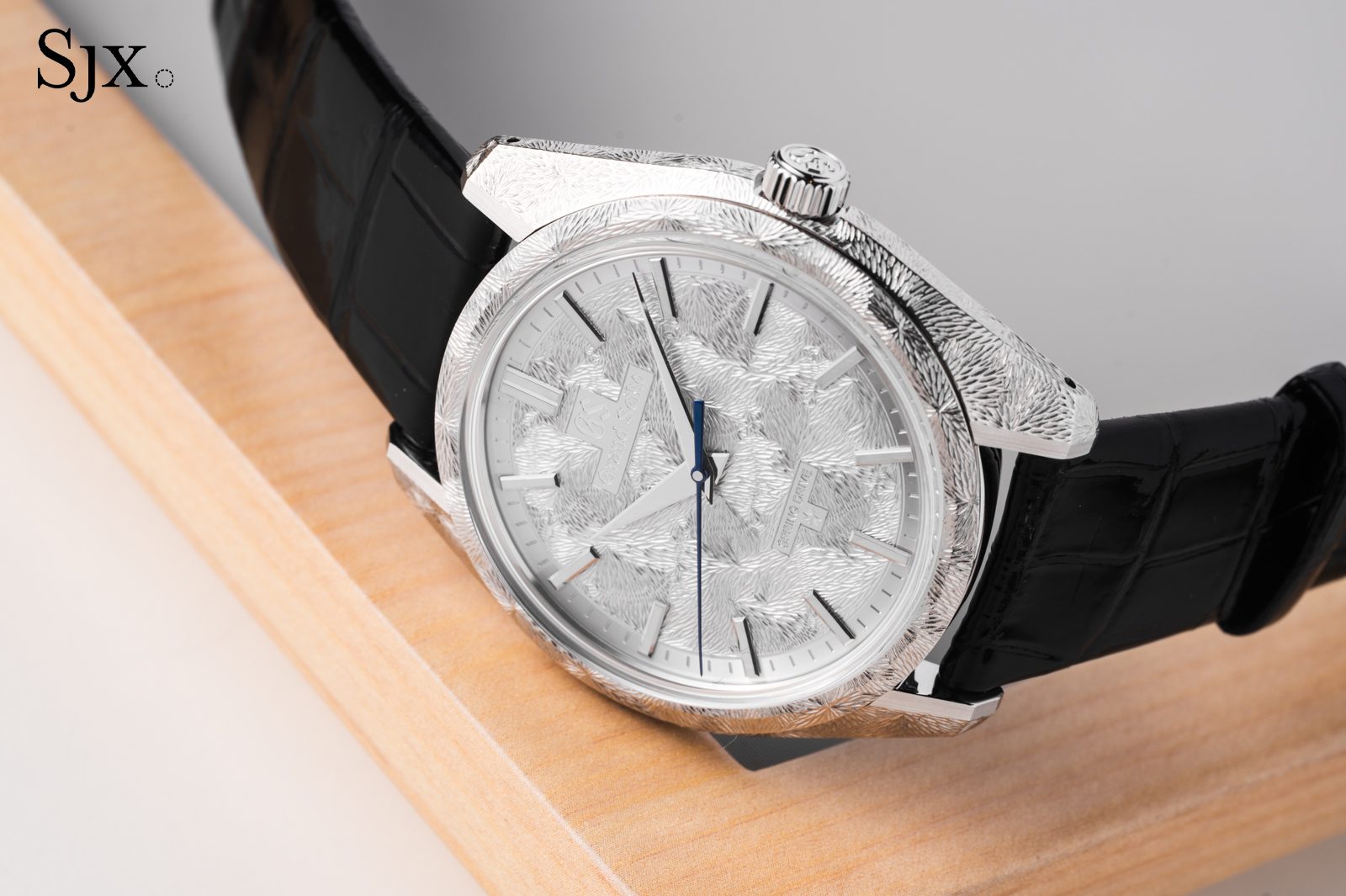

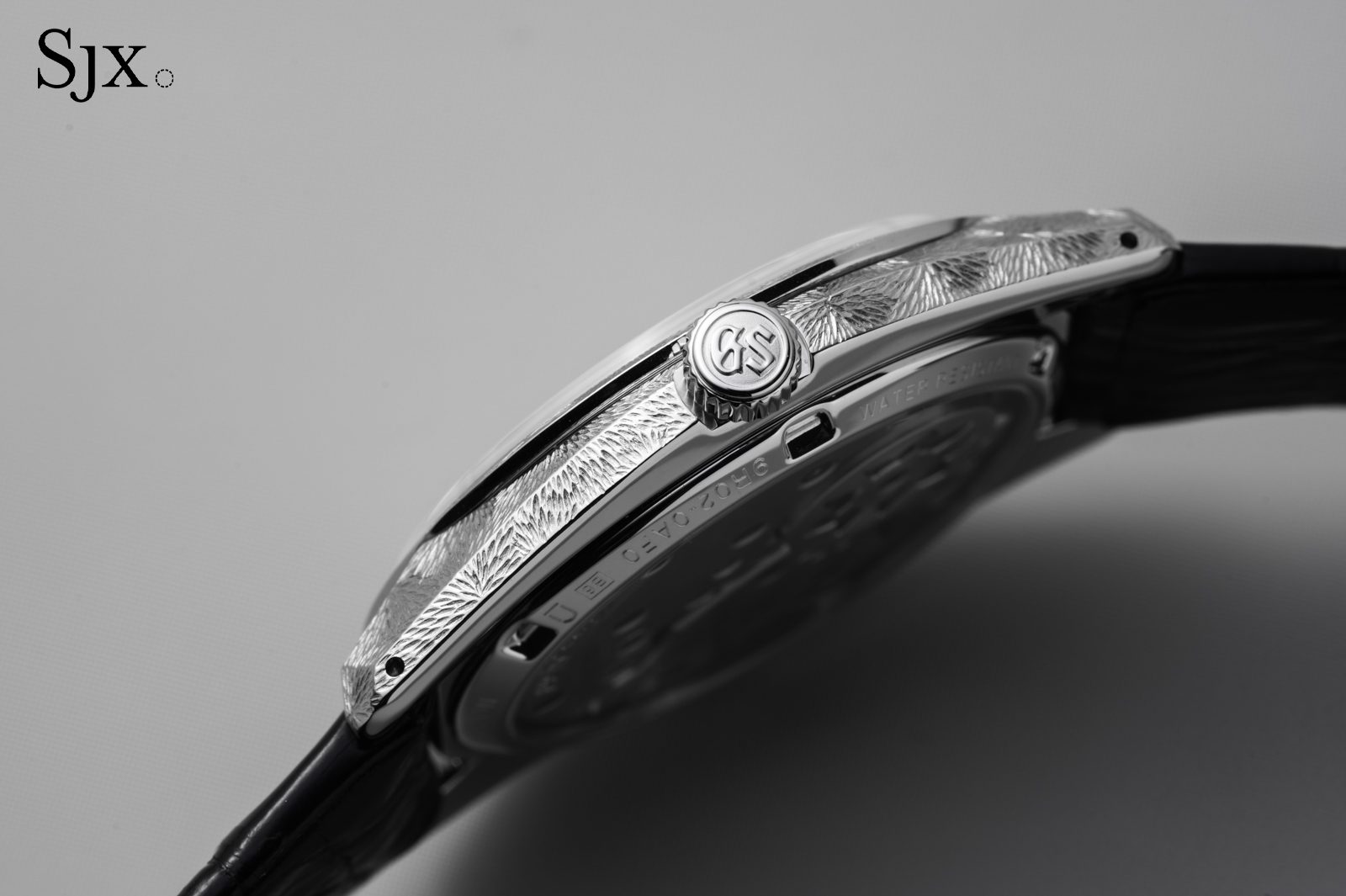

The Hisen SBGZ011 is one of 50 watches, and no two share a surface. Each case and dial is engraved free-hand: a craftsperson guides a rotary tool's cutting disk across the platinum, gouging the metal hundreds of times to build a waterfall motif. At arm's length the 50 look identical; up close each is a fingerprint. Grand Seiko cold-forges the case from platinum 950, a material that resists the kind of machining gold accepts readily — which is why the Rolex Day-Date's platinum bezel stayed smooth for so long. The technique carries history. Engraved cases were once an industry-wide practice, from Tissot to Patek Philippe, and Seiko used textured cases for the Astronomical Observatory Chronometer movements and the pioneering Astron cal. 35SQ. The Hisen's case evokes the vintage Quartz VFA ref. 3823-7030 and 3820-6000, both of which wore similarly worked platinum. Unlike the SBGZ001 'Snowflake' and SBGZ009 'White Birch', the Hisen's dial text and minute markers sit on islands of plain platinum because its waterfall engraving is much deeper, requiring that contrast for legibility.
The 84-Hour Spring Drive

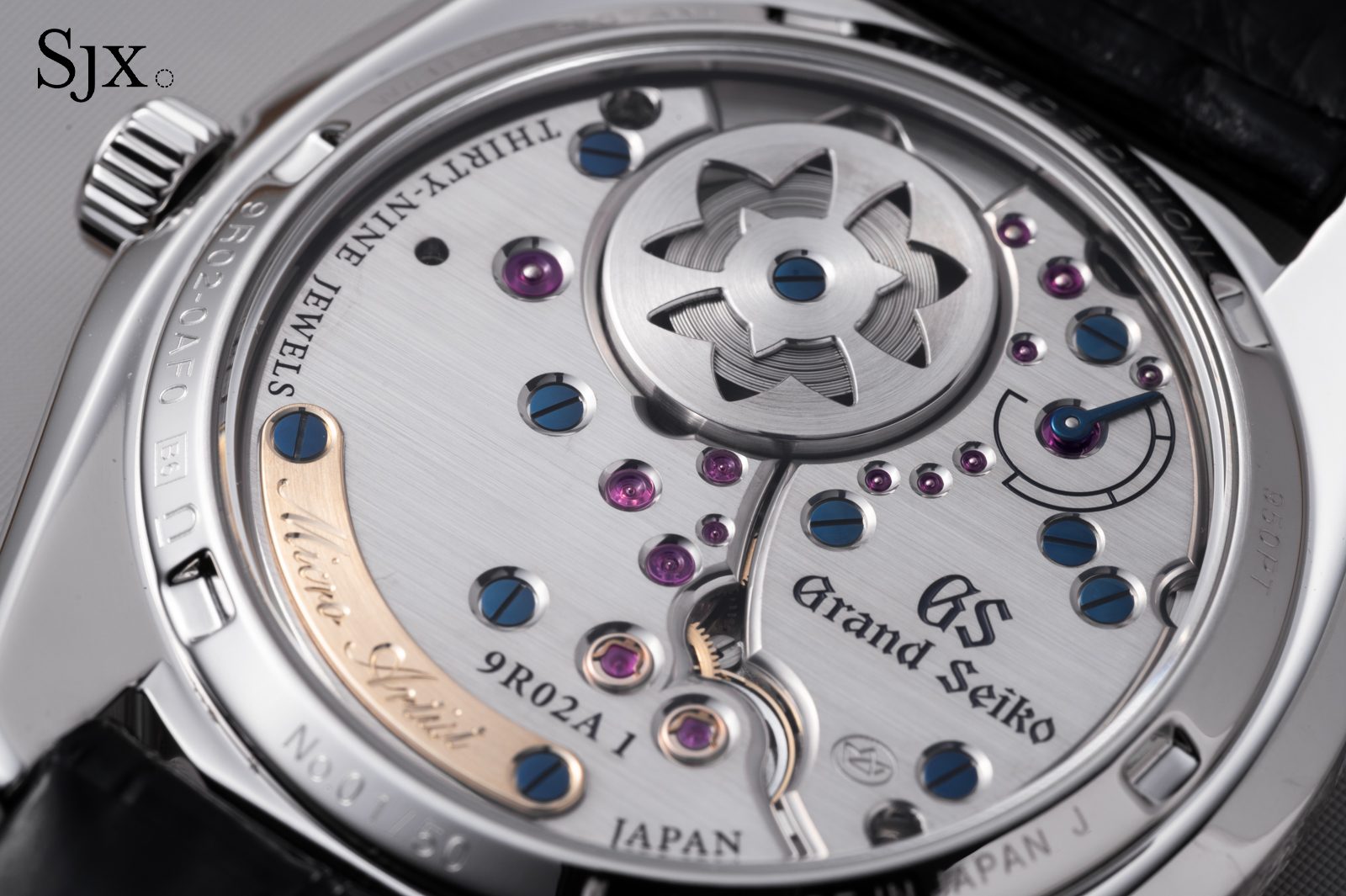

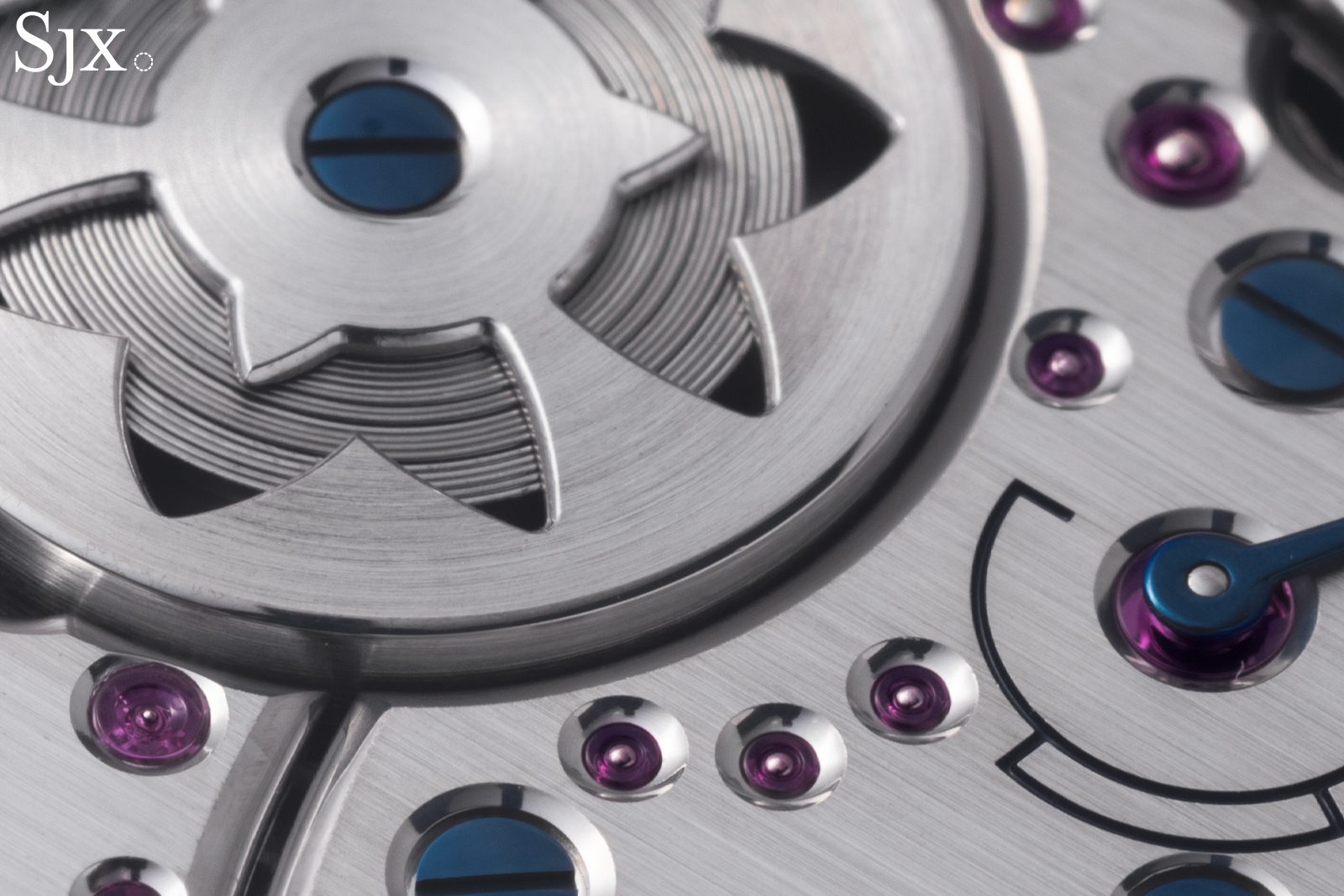

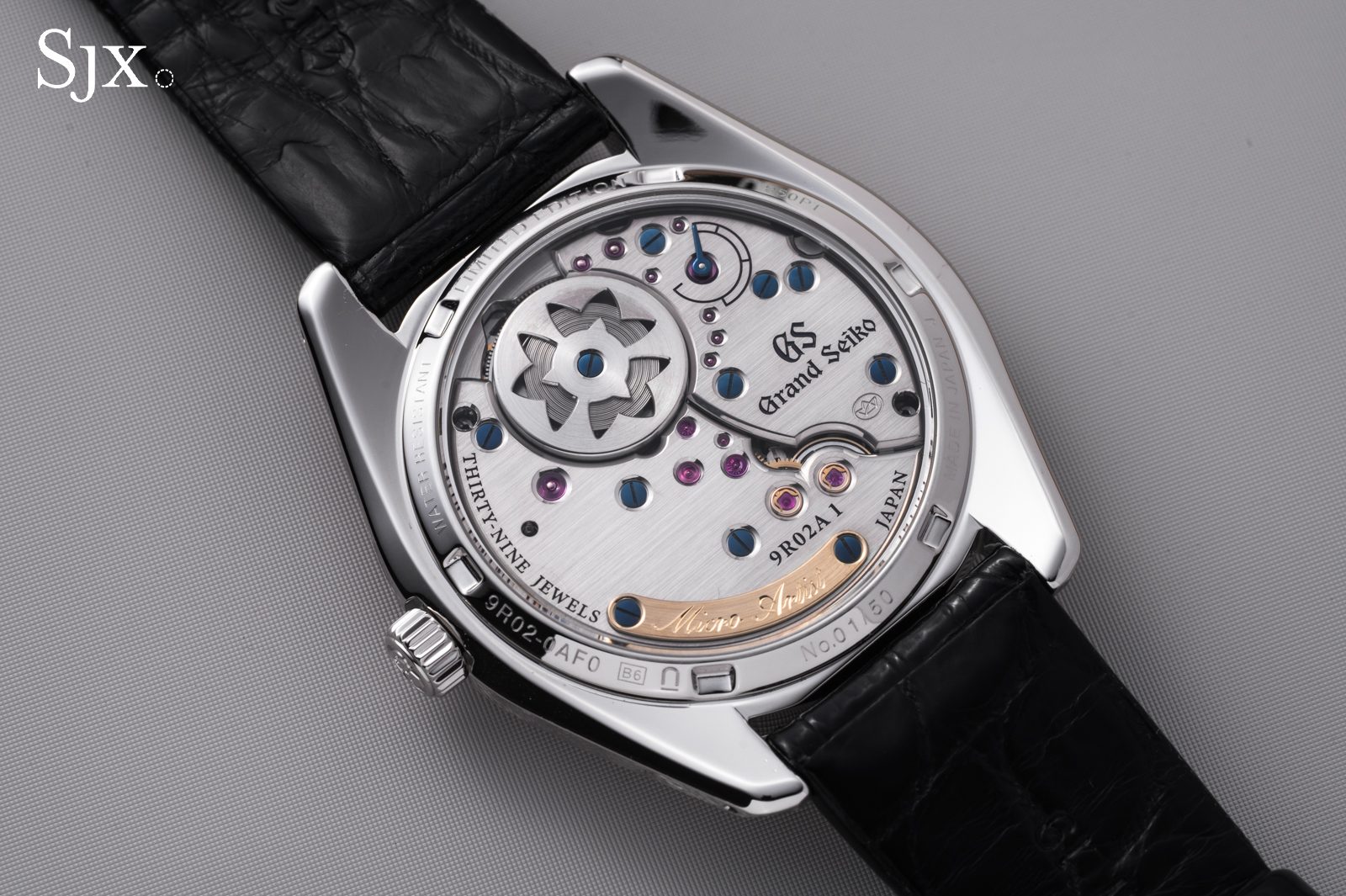

Inside the platinum shell beats the cal. 9R02, a hand-wound Spring Drive movement with an 84-hour power reserve. It is a sibling of the Credor Eichi II's cal. 7R14, but with three distinct upgrades. The first is a dual spring barrel: two stacked mainsprings that alone deliver 72 hours, extended to 84 by a torque return system invented by Osamu Takahashi. Unlike a mechanical movement, a Spring Drive's timekeeping does not depend on mainspring torque as long as the movement has enough to run. That means excess torque at the top of the reserve is normally wasted; the torque return system harvests it, rewinding the barrel during the first 48 hours of the 84-hour cycle. The mechanism, integrated into the power reserve indicator on the movement side, stops the watch cleanly at the end of the reserve. The third upgrade is cosmetic but significant for collectors: a sharp inner angle between the two Diafix settings, a finishing detail the Eichi II lacks. The movement runs at 32,768 Hz and is manually wound.
Dufour's Lesson, Grown in Hokkaido

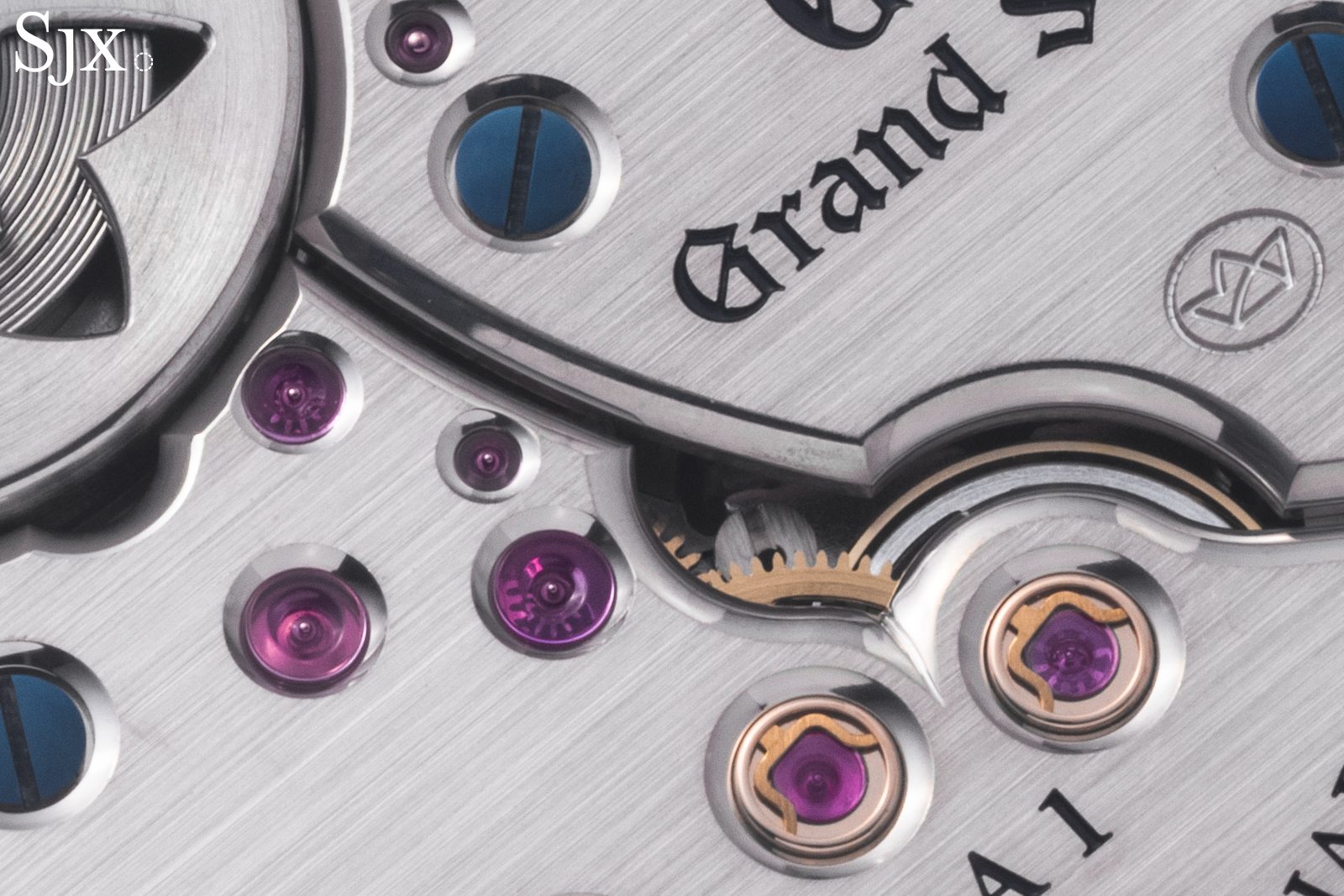

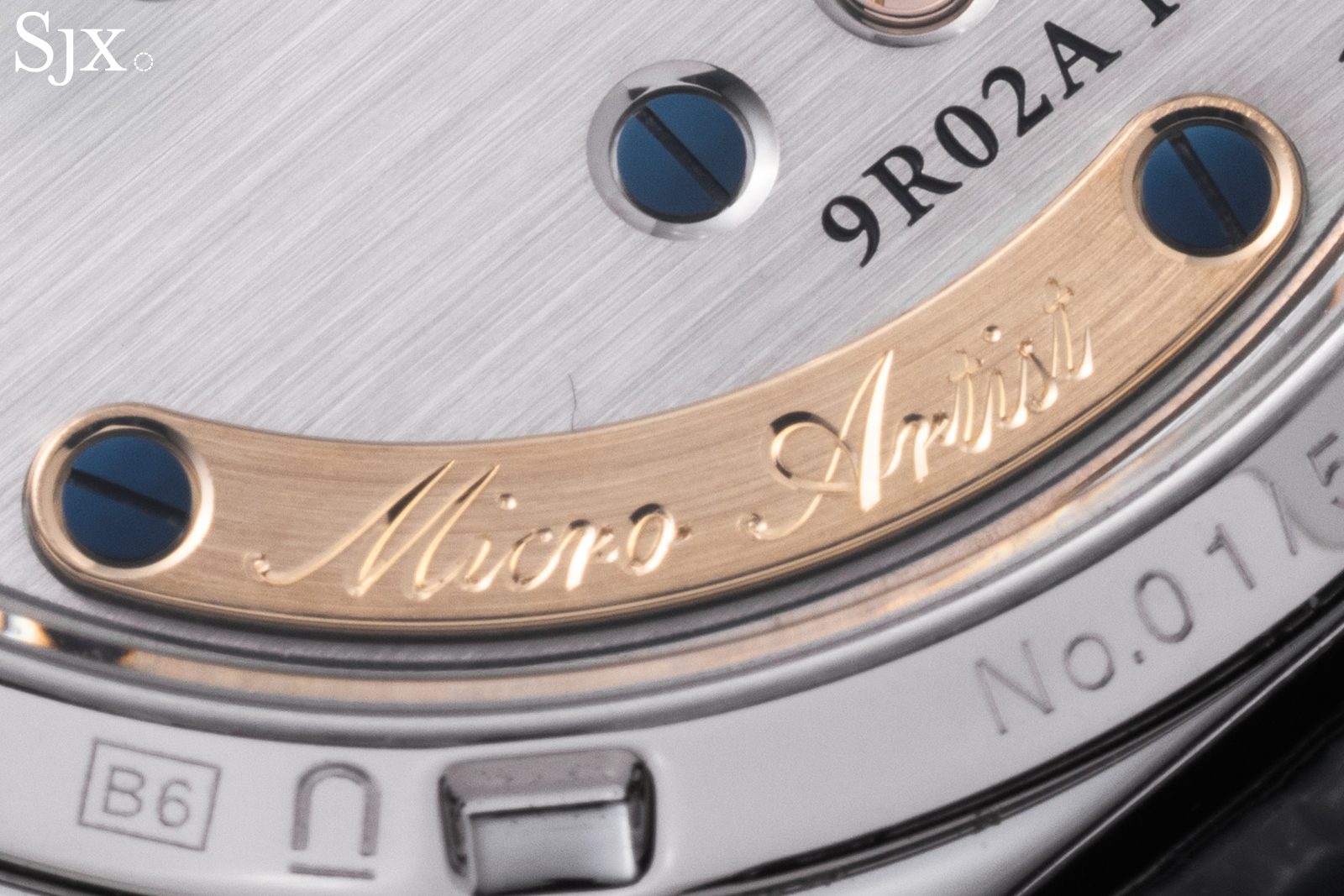

The finishing of the 9R02 owes a direct debt to Philippe Dufour. Two Seiko Epson watchmakers travelled to Le Soliat to train under him, and what they brought back was an old Vallée de Joux technique: using yellow gentian wood, rather than boxwood, to apply polishing paste to bevelled edges. The Micro Artist Studio later found a research university in Hokkaido growing the plant, so the polishing wood is now Japanese. The movement's visible surfaces are finished to a standard that invites comparison with far more expensive watches — broad bevels, generous countersinks, a nearly mirror-polished interior on the barrel that reduces mainspring adhesion. There is also a gold plaque on the movement, inspired by the plaques on Dufour's Simplicity, which an owner can have free-hand engraved with anything they wish. Parts hidden from view, however, are not decorated to the same level, which is part of how the Hisen stays under six figures. The Dufour connection runs deep; his work found an early and passionate audience in Japan before becoming mainstream.
A Dial That Divides Opinion

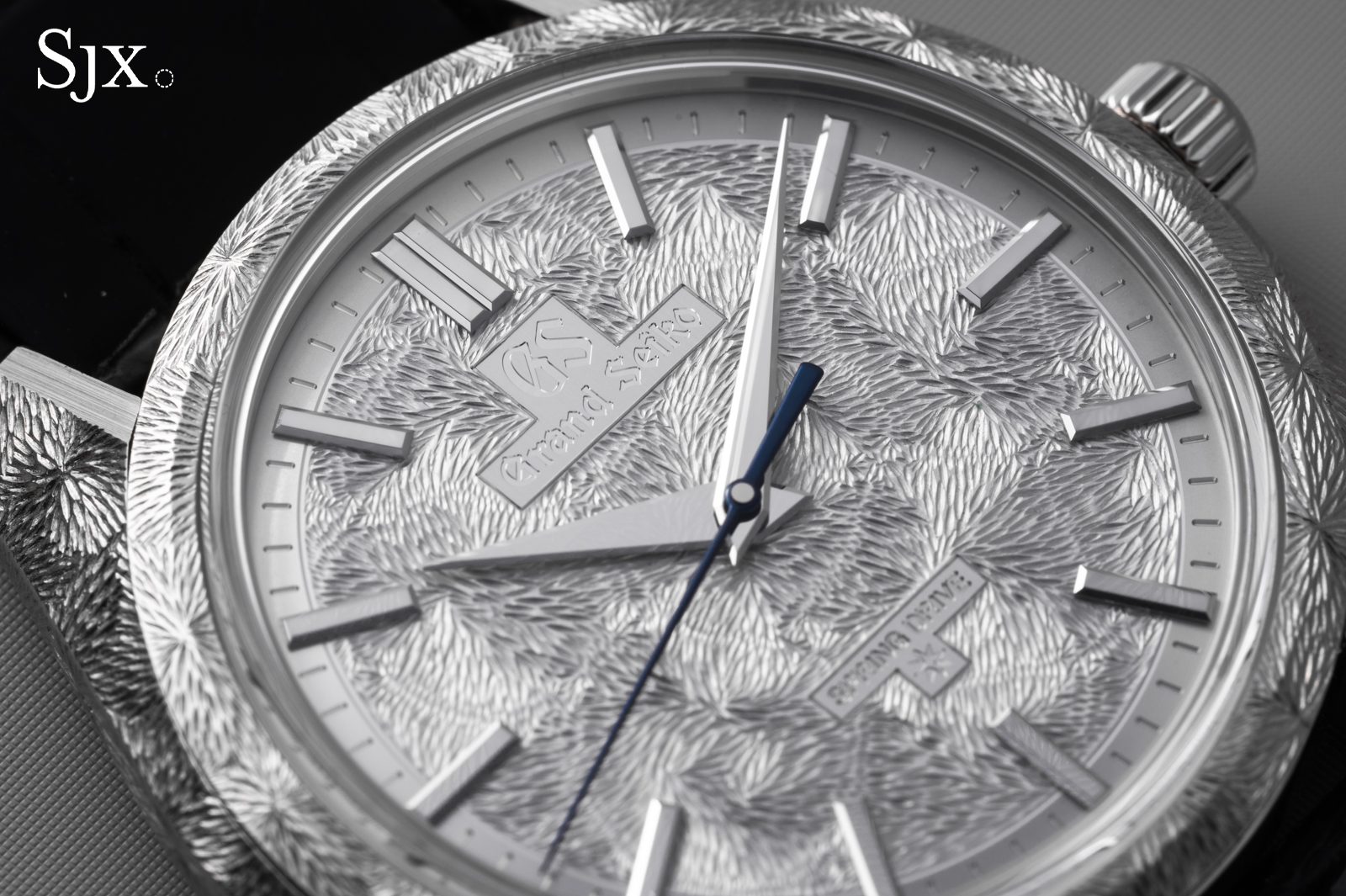

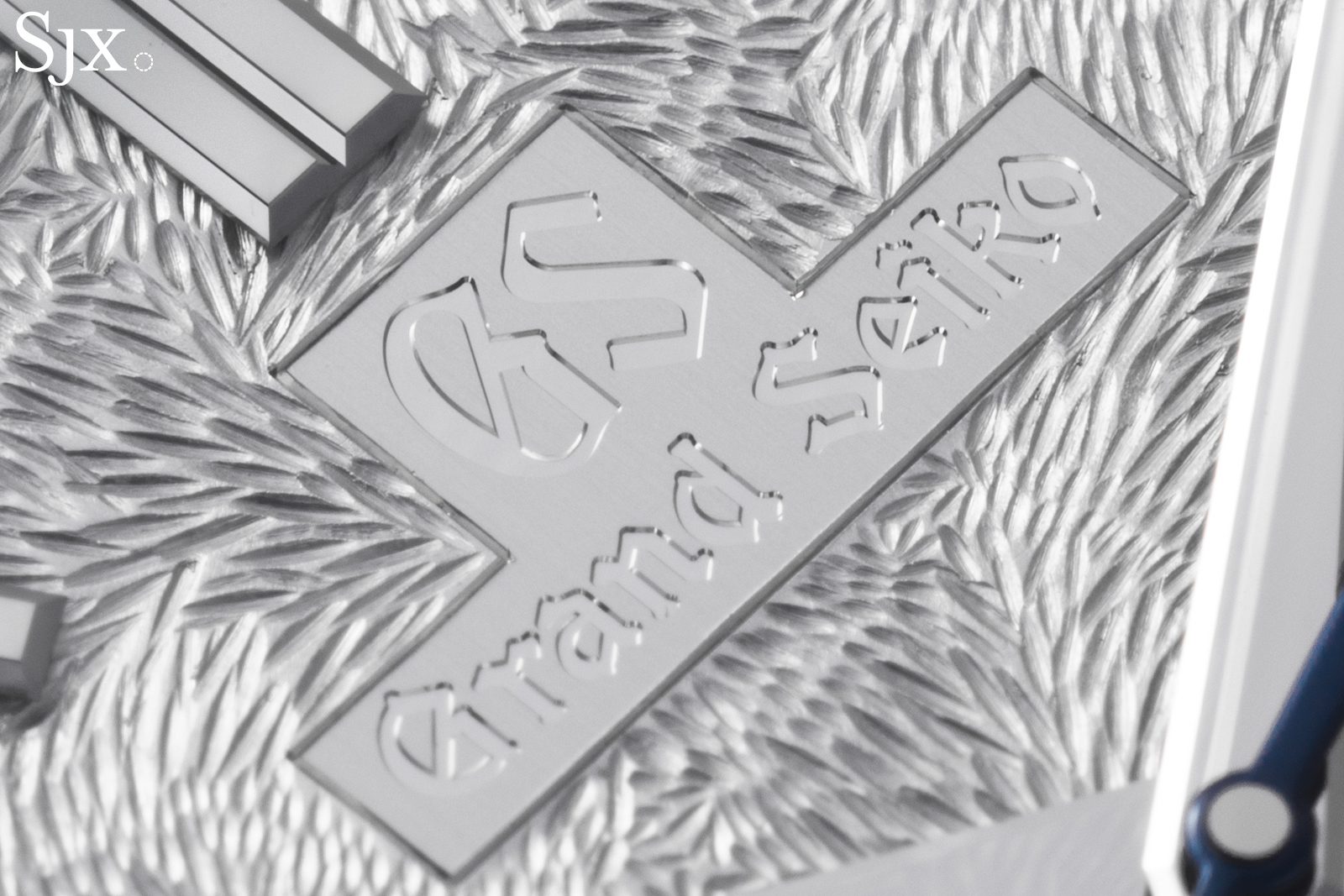

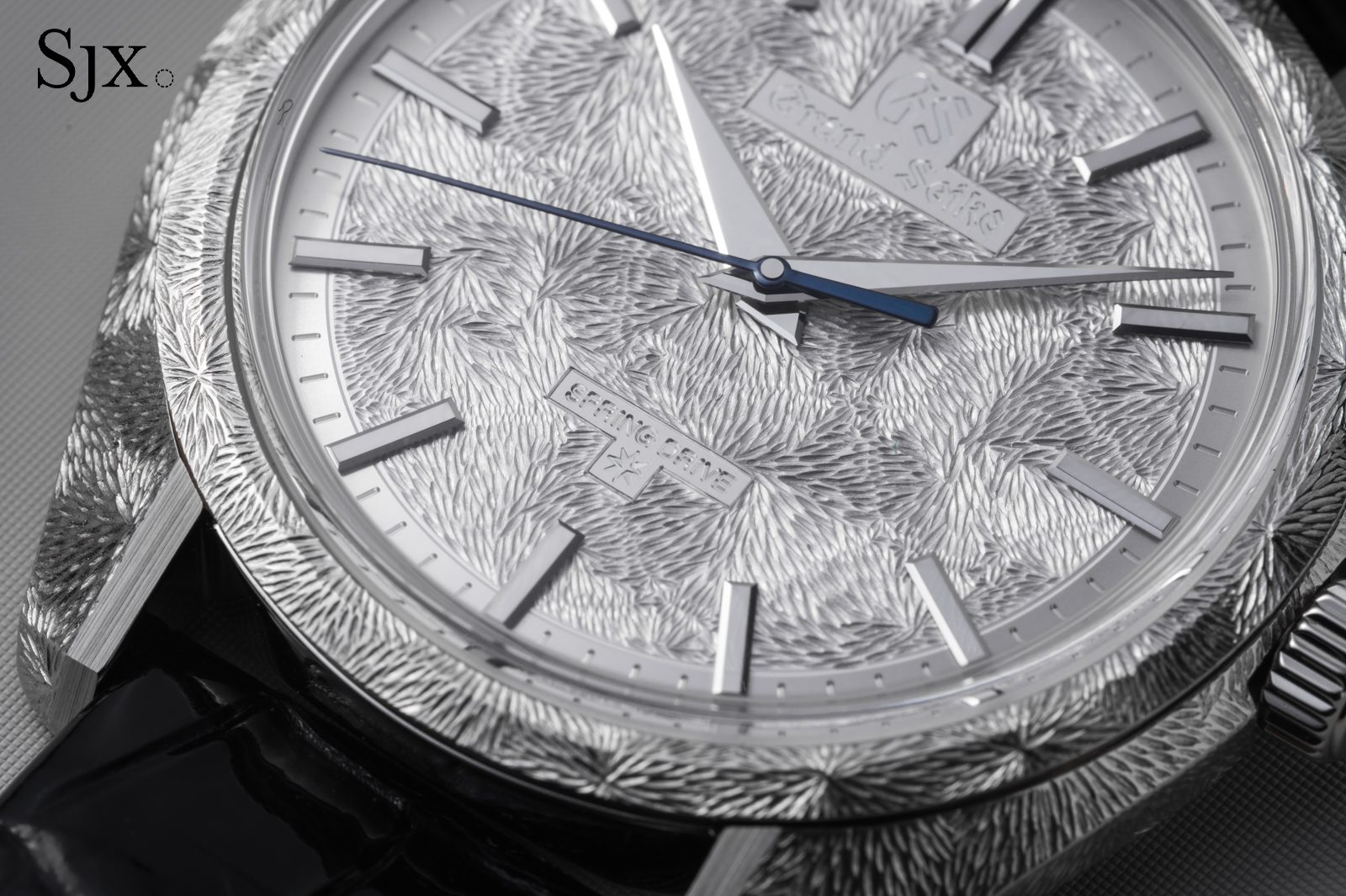

The dial receives the same hand-engraved waterfall treatment as the case, but with some careful exceptions. The Grand Seiko script and minute markers sit on islands of undecorated platinum, milled flat for contrast — the deeper engraving of the Hisen's motif would otherwise swallow them. The eight-pointed star beneath the Spring Drive logo marks a 'Special Dial', meaning the indices are gold, as are the hour and minute hands. The sweep seconds and power reserve hands are thermally blued steel. It is a lot of visual information, and the reviewer of record admits the Hisen is aesthetically his least favourite of the four engraved-case models Grand Seiko has issued, preferring the SBGZ001 'Snowflake' and the astral SBGZ007. The case, he writes, is 'almost magical' — but the dial is simply busy. Notably, the Hisen is one of the very few Seiko products without a movement and dial code at six o'clock; not even the hand-painted porcelain dials of the Credor Eichi II earn that exemption. The restraint of omission, here, is the finishing touch.
The Quiet Counterweight to the Divers
The Hisen arrives in a year when Grand Seiko's commercial energy is concentrated elsewhere: the compact Spring Drive SLGB003 launched last year on a quick-adjust bracelet, and this year's mid-sized Spring Drive divers are expected to sell strongly. The Shinshu Watch Studio, where all Spring Drive movements are made, is running the fine-watchmaking programme in parallel — the diamond-and-Mozambique-garnet 'Red Lion' ref. SBGD228 sits alongside the Hisen in that effort. The pricing tells the story: the Hisen is US$84,000, a limited edition of 50, available at Grand Seiko boutiques. Compare that with the stainless-steel SLGW007 'Moonlit Birch', a 38.6mm manual-wind with the 9SA4 high-beat movement and 80 hours of reserve at US$10,000, or the SLGC006 'Sunrise' Tentagraph with its High-Intensity Titanium case, 18k rose gold bezel ring and crown, and 9SC5 chronograph at US$22,600. The Hisen is not competing with those watches. Instead, its cal. 9R02 movement offers 84 hours of power reserve via a dual spring barrel and a torque return system that exploits excess torque during the first 48 hours; it also carries a gold plaque that can be free-hand engraved to the owner's specification.
Image: watchesbysjx.com
Image: watchesbysjx.com
Image: watchesbysjx.com
Draws on source material published at watchesbysjx.com.
